K070240

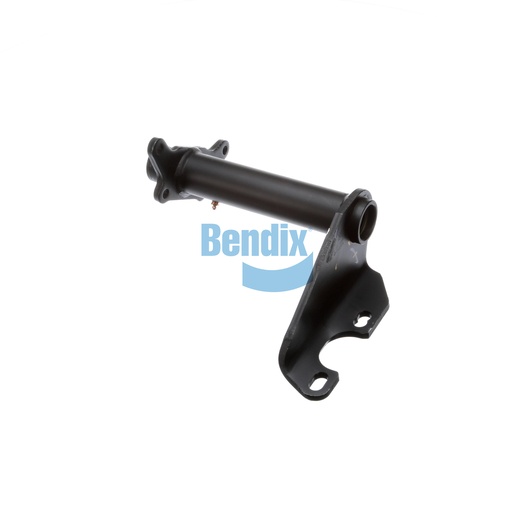

Bracket Assembly
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for foundation drum brakes, engineered to provide outstanding support and reliability in commercial vehicles. This assembly features a full arm style and single gusset design, ensuring it withstands the rigors of heavy-duty applications. With its nylon bushings and a camshaft bracket angle of 56° CCW, it is built for both durability and performance. The assembly's dimensions, including a slack length of 5.50 to 6.00 inches, are optimized for a precise fit, facilitating easy installation and maintenance. Weighing just under 15 lbs, it combines strength with efficiency, making it a smart choice for fleet operators. For the best in genuine Bendix OEM parts, Source One Parts Center is your trusted source, providing quality components that help keep your vehicles on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.53
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.73 lb
