K070227

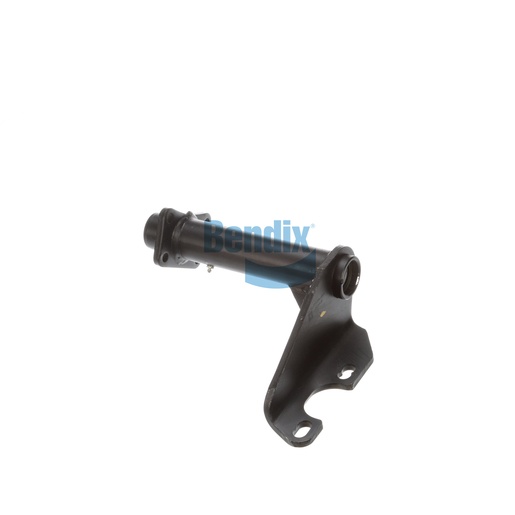

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component that supports the foundation drum brakes in commercial vehicles. Featuring a full arm style and robust nylon bushings, this assembly is designed for maximum strength and reliability, allowing it to endure the demanding conditions of heavy-duty trucking. With precise dimensions and a camshaft bracket angle of 55° CW, this bracket ensures optimal alignment and performance of the braking system. Its durable construction minimizes wear and tear, extending the life of both the bracket and the associated braking components. Whether retrofitting or maintaining existing systems, this bracket assembly delivers the performance and safety necessary for commercial applications. Trust Source One Parts Center for your Bendix components, where genuine OEM parts ensure your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
