$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

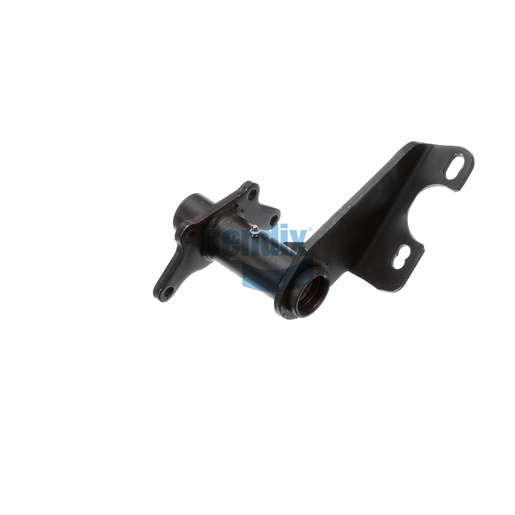

The Bendix Bracket Assembly offers a perfect combination of durability and performance for your truck's foundation drum brakes. Made in the USA, this assembly features a scalloped arm style and a single gusset, providing enhanced strength and stability. With nylon and bronze bushings, it ensures smooth operation and longevity under tough conditions. The assembly's camshaft bracket angle of 314° CW is designed to optimize braking efficiency, while its dimensions of 10.22 inches from centerline to centerline and a slack length of 5.50 to 6.00 inches make it a versatile choice for various applications. Weighing in at just 3.6 kg, it facilitates easier installation without compromising on strength. This bracket is crucial for ensuring your braking system operates effectively, contributing to the overall safety of your vehicle. For the best place to purchase genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets affordability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.22
Camshaft Bracket Angle
314° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
8.01 lb
