$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

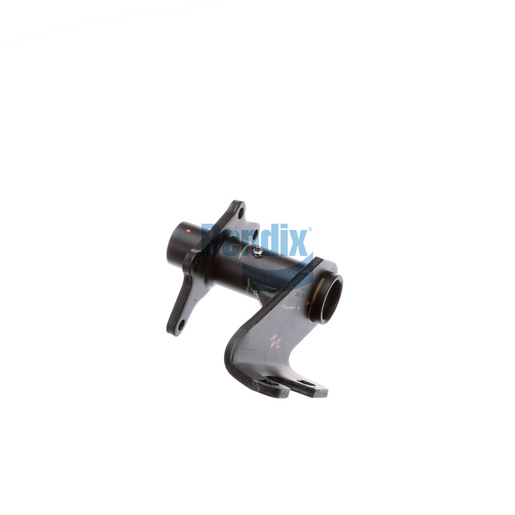

The Bendix bracket assembly is expertly engineered to provide the necessary support for your vehicle's braking system. With its scalloped arm style and robust construction, this bracket ensures a secure fit and enhanced durability under demanding conditions. The nylon and bronze bushings are designed to minimize friction and wear, leading to improved performance and reduced maintenance needs. This assembly is ideal for various applications, making it a versatile choice for fleet operators. For genuine Bendix OEM parts that guarantee quality and fit, look to Source One Parts Center, where we prioritize your vehicle’s performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.22
Camshaft Bracket Angle
314° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.16 lb
