$329.95
$395.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

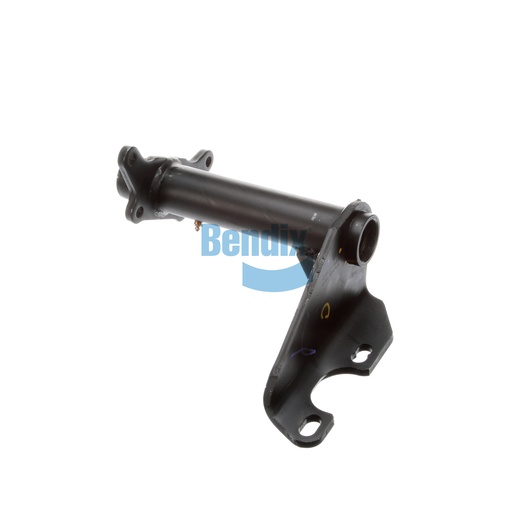

The Bendix Bracket Assembly is engineered to provide secure support for your truck's braking system, ensuring optimal performance and reliability. Crafted from high-grade materials, this assembly features a full arm design with nylon and bronze bushings for enhanced durability. With an angle of 56° CCW, it allows for precise alignment, which is critical for the effective operation of air chambers and camshafts. This bracket assembly is easy to install, making it an essential part for any fleet looking to maintain their braking systems efficiently. Source One Parts Center stands out as the best place to get genuine Bendix OEM parts, providing you with the quality and reliability your fleet needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.65 lb
