K069574

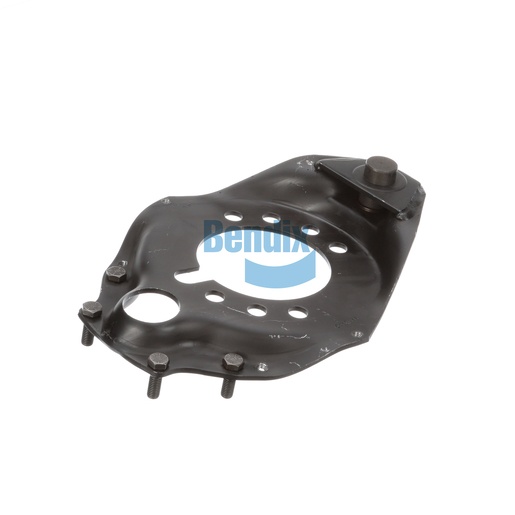

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a critical component in the foundation drum brake system, designed to ensure the effective operation of the braking mechanism. Crafted with precision, this assembly provides robust support and alignment for brake shoes, enhancing overall braking performance. Its durable construction is engineered to withstand the demanding conditions associated with heavy-duty applications, ensuring long-lasting reliability. Easy to install and maintain, this assembly is ideal for fleet operators looking to minimize downtime. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, offering you the assurance of quality and reliability for your commercial vehicle's braking system.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.27 lb
