$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

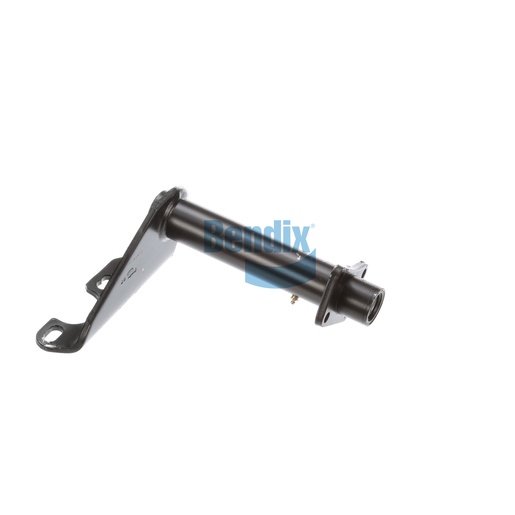

The Bracket Assembly from Bendix is engineered to provide essential support and stability for your foundation drum brakes, making it an indispensable part of your vehicle's braking system. Featuring a full arm style and durable nylon bushings, this assembly is designed to withstand the rigors of heavy-duty applications. With a camshaft bracket angle of 56° CW, it allows for precise positioning, ensuring that your brakes function optimally under a variety of conditions. The generous slack length of 5.50 to 6.00 inches offers compatibility with multiple setups, simplifying installation and replacement. This component not only enhances the performance of your braking system but also contributes to overall vehicle safety. Source One Parts Center is the premier choice for purchasing genuine Bendix OEM parts, ensuring you receive components that are built to last and meet the specific requirements of your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.53
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.15 lb
