$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

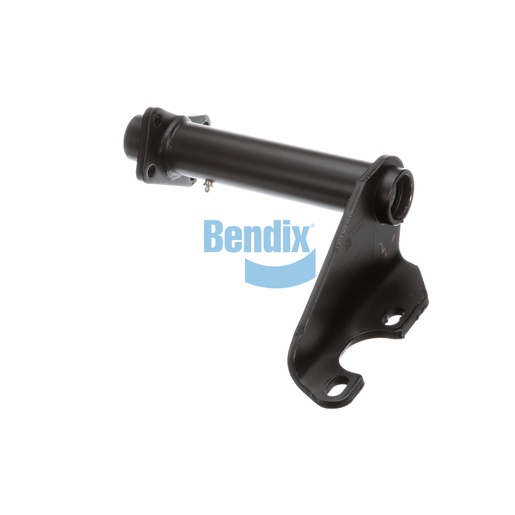

The Bracket Assembly is a crucial part of your commercial vehicle's foundation drum brake system, designed to provide robust support for the air chamber and camshaft. Featuring a full arm style and made with quality materials, this assembly ensures durability under heavy loads and rigorous conditions. The design includes nylon bushings that minimize friction and wear, enhancing the longevity of the braking system. With a camshaft bracket angle of 56° CCW and dimensions that accommodate various configurations, this assembly fits seamlessly into your current setup. It is essential for maintaining optimal brake performance and safety on the road. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you receive high-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.53
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.25 lb
