K067233

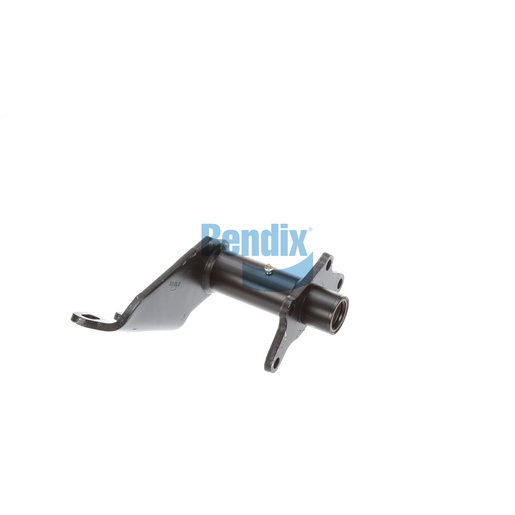

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed to provide robust support for your vehicle's braking system. This assembly features a scalloped arm style, engineered to withstand the demands of heavy-duty applications while ensuring optimal performance. Weighing 3.2 kg, it provides the necessary strength without compromising on manageability during installation. Its precise design allows for compatibility with a variety of braking components, enhancing the overall effectiveness of your vehicle's braking system. This assembly is an essential investment for fleet managers and drivers who prioritize safety and efficiency. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring you get the best for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
310° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Country of Origin
United States
Weight
7.01 lb
