K067232
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

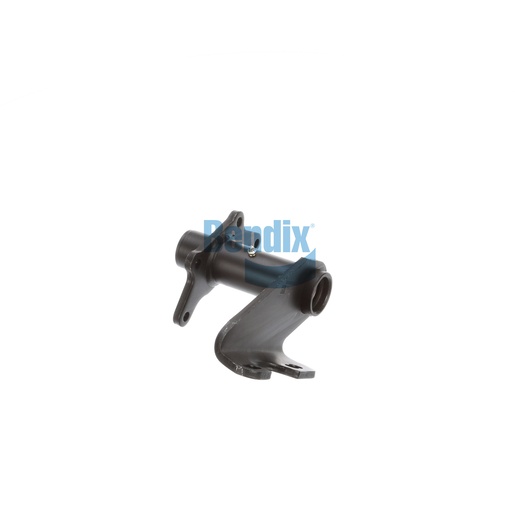

The Bendix Bracket Assembly is an essential component that plays a critical role in the stability and performance of drum brake systems in commercial trucks. Designed with a scalloped arm style, this bracket provides a secure mounting point for the camshaft, ensuring that braking efficiency is maximized. The construction features durable bronze bushings that enhance longevity and reduce wear, making it ideal for heavy-duty applications. With a weight of 11.78 lbs and dimensions that facilitate easy installation, this bracket assembly is engineered for both reliability and performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your best resource, providing quality and service that you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Camshaft Bracket Angle
310° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Country of Origin
United States
Weight
11.78 lb
