K066978

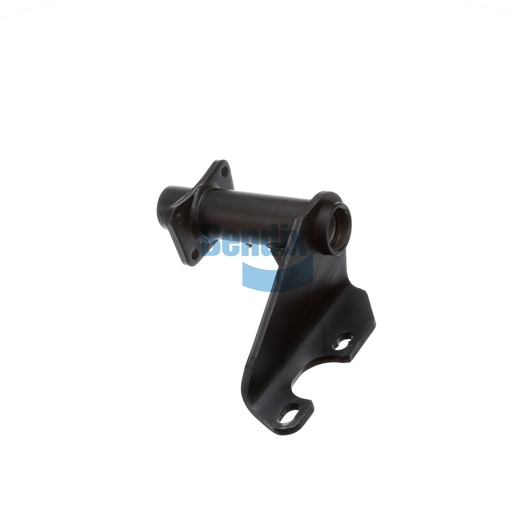

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a meticulously designed component essential for the stability and function of foundation drum brakes. Featuring a unique single gusset design and full arm style, this bracket ensures robust support and alignment within the braking system. Weighing only 11.5 lbs, it combines lightweight construction with high durability, making it a smart choice for various commercial vehicle applications. The gusset angle of 40° is optimized for efficiency, ensuring that the assembly performs reliably under different load conditions. This bracket assembly is also designed for straightforward installation, which minimizes downtime during maintenance. With a focus on performance and safety, this component is vital for any fleet looking to maintain operational efficiency. For sourcing genuine Bendix OEM parts that deliver on quality and reliability, Source One Parts Center is the best choice.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
830230
Camshaft Bracket Angle
90° CCW
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.5 lb
