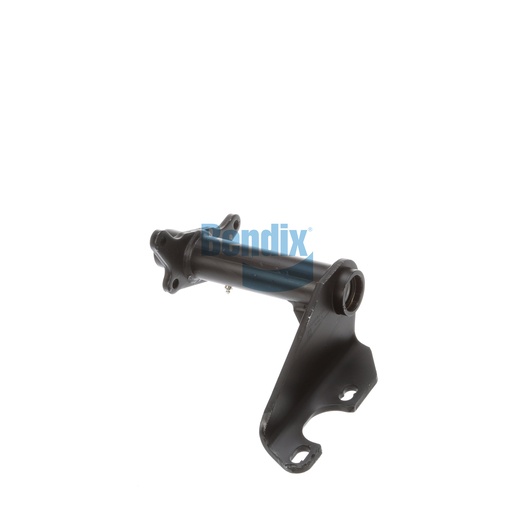

975414N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential component for ensuring the stability and functionality of your vehicle's braking system. With a net weight of 6.4 kg, this robust assembly is built to withstand the harsh conditions faced by commercial vehicles on the road. Designed for easy installation, this assembly features high-quality nylon bushings and a full arm style that enhances durability and performance. Its precise engineering allows for optimal alignment and movement, ensuring that the braking system operates smoothly and efficiently. This bracket assembly is manufactured in the United States, adhering to stringent quality standards, providing peace of mind for fleet operators. At Source One Parts Center, we are dedicated to providing genuine Bendix OEM parts that guarantee the best performance for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.88
Height
292.0 mm (11.5 in)
Length
353.0 mm (13.9 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.1 lb
