975330N

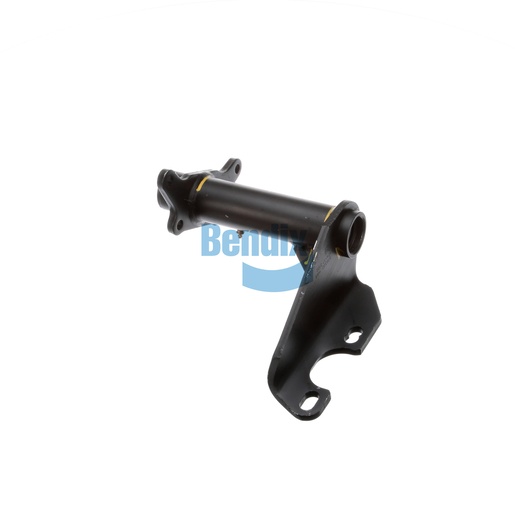

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component for foundation drum brakes, designed to enhance the durability and performance of your vehicle's braking system. Weighing 6.2 kg, this assembly features a full arm style with nylon bushings, ensuring robust support for brake components. The adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 60° CCW provide optimal fitment for various brake systems. This assembly is built to withstand heavy-duty use, making it a vital part of maintaining effective braking power. Whether you're in the logistics industry or managing a fleet, reliable brake components are essential for safety. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring your vehicle operates at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.65 lb
