975254N

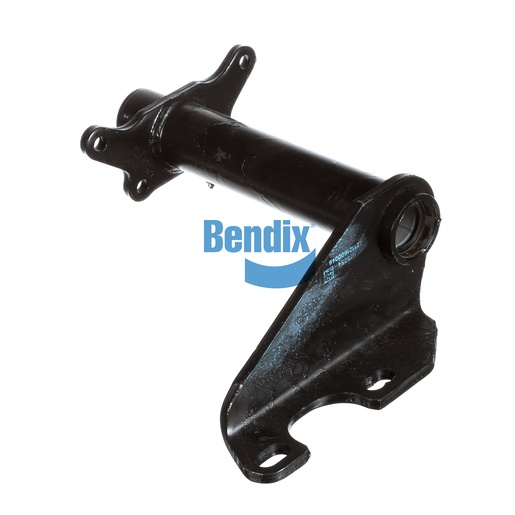

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed for foundation drum brakes, providing essential support for various braking system parts. Engineered for durability, this assembly is crafted to withstand the demanding conditions of commercial vehicle use, ensuring reliable performance and safety. The design features a full arm style and gusset, which enhances stability and reduces wear over time. With a length of 15.51 inches and a weight of 6.7 kg, this bracket assembly is both robust and lightweight, facilitating straightforward installation. It plays a crucial role in maintaining the integrity of your braking system, ensuring that your vehicle operates efficiently and safely. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering high-quality components tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.53
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
394.0 mm (15.51 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.79 lb
