819200N

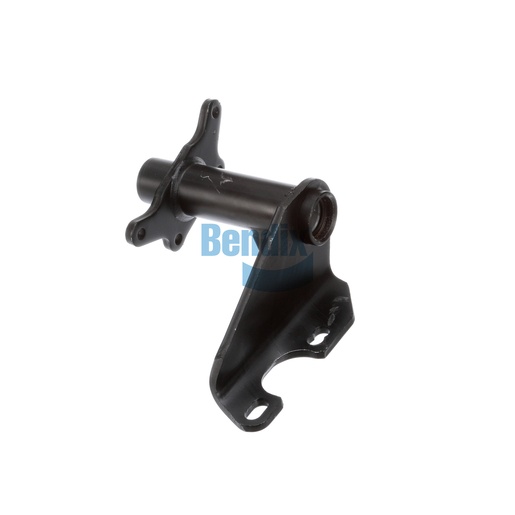

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component designed for the proper installation and functioning of braking systems in commercial vehicles. Made with high-quality materials, this assembly offers superior durability and strength, ensuring that it can withstand the rigors of heavy-duty applications. Its precise engineering allows for a secure fit, minimizing the risk of wear and tear that can lead to performance issues. With an easy installation process, this bracket assembly helps reduce maintenance downtime, allowing for increased productivity on the road. By choosing genuine Bendix parts, you can enhance the reliability and safety of your braking system. Source One Parts Center is the premier destination for authentic Bendix OEM parts, offering unmatched quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CCW
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.7 lb
