811702

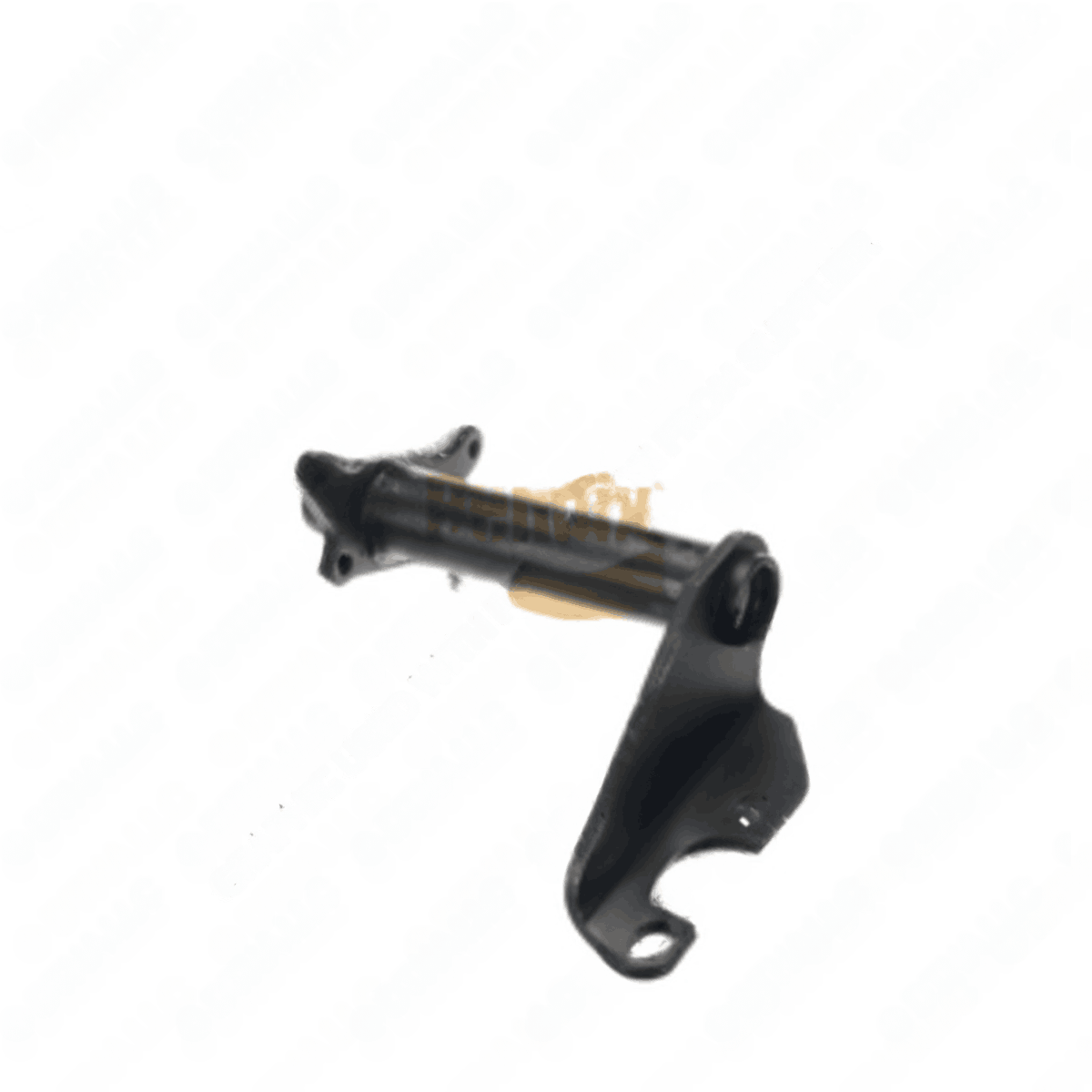

Bracket AY-100
Bendix

This structural mounting solution provides a rigid anchoring point for critical subsystems within heavy‑duty braking and chassis assemblies. Overall dimensions of width 365 mm, height 292 mm, and length 383 mm define a compact footprint that fits a range of vehicle configurations while maintaining strong load paths. The geometry supports precise alignment of attached hardware, reducing misfit, vibration, and the risk of premature fastener loosening under harsh highway or construction site conditions. By distributing mounting loads across a broad plane, it helps protect connected components from fatigue and wear, increasing service life and maintenance intervals. The item is cataloged under VMRS code 013-010-272, which places it in the structural bracket family and aligns it with the 41390 category—context for engineers selecting compatible mounting hardware within the chassis and brake subsystem grouping. In field use, technicians typically replace damaged or worn mounting points to restore structural integrity and ensure consistent performance of attached devices such as control valves, sensors, or auxiliary hardware. Because cross references are not listed, users should verify fitment against OEM mounting patterns and the vehicle frame geometry before installation. Proper installation restores rigidity, reduces operational deflection, and supports reliable system operation in demanding on‑highway and off‑highway environments.
