K077717
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

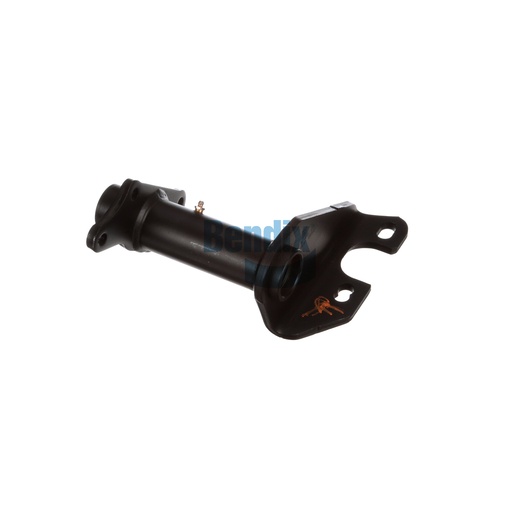

The Bendix Bracket Assembly is designed for superior performance in drum brake systems, providing essential support for air chambers and camshafts. With its single gusset and full arm style, this assembly boasts a gusset angle of 40°, ensuring robust structural integrity. The use of high-quality nylon and bronze bushings enhances durability, minimizing wear and ensuring smooth operation. With a slack length between 5.50 and 6.00 inches and a camshaft bracket angle of 55° CW, this part is adaptable for various brake configurations. For genuine Bendix OEM parts that you can trust, Source One Parts Center is your top choice for quality and reliability.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
