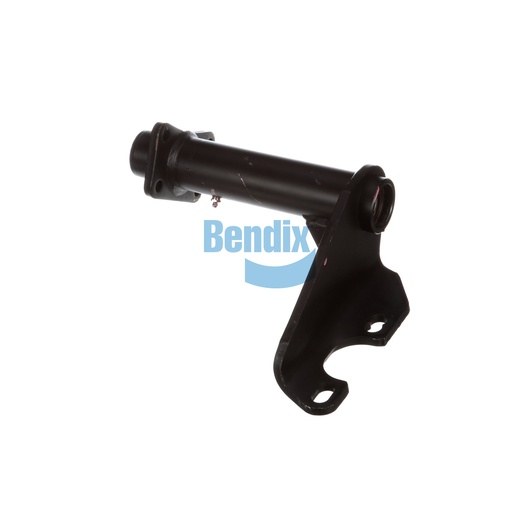

K077716
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key component in the driver assistance and collision mitigation systems of commercial vehicles, providing essential support for various sensors and systems. Designed with a single gusset and full arm style, it offers the strength needed for reliable performance even in challenging conditions. The nylon and bronze bushings ensure smooth operation and longevity, making this bracket assembly a vital part of modern safety features. Its camshaft bracket angle of 55° CCW and a centerline length of 14.31 inches allow for easy integration into existing systems, enhancing the overall functionality of the vehicle. For sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best option, providing high-quality components for commercial vehicles.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
