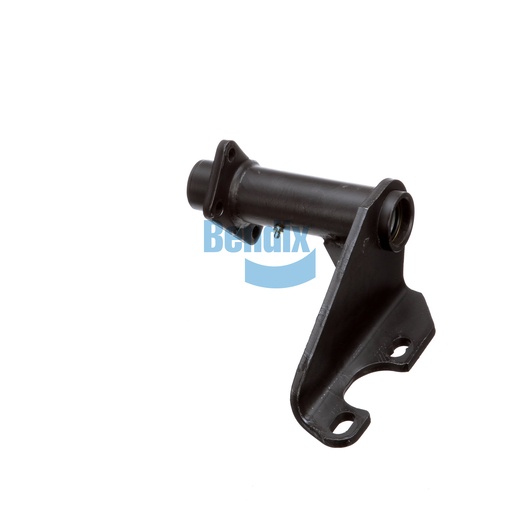

K077002
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of the driver assistance systems for commercial vehicles, designed to provide reliable support for various sensors and components. Constructed with a single gusset and a full arm style, this assembly offers exceptional stability and strength. The nylon bushings enhance the durability of the assembly, ensuring it can withstand the rigors of heavy-duty applications. With a camshaft bracket angle of 40° counterclockwise, it allows for optimal positioning of sensors for accurate performance. Weighing 5.8 kilograms (12.7 pounds), this assembly is designed for easy installation and maintenance, making it a practical choice for fleet operations. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best option, ensuring you receive high-quality components tailored for your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
40° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.7 lb
