975959

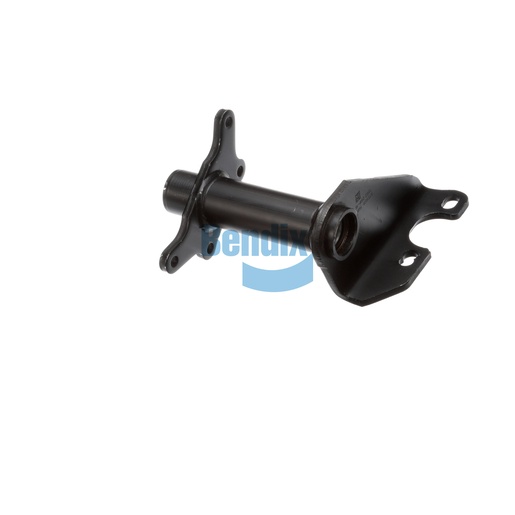

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component designed to provide robust support for your vehicle's braking system. With a weight of 5.4 kg, this assembly features a full-arm style and is constructed from high-quality materials to ensure durability and long-lasting performance. This part is crucial for maintaining the proper alignment and function of the camshaft and air chamber, which are vital for effective braking. Engineered to minimize wear and enhance operational efficiency, it is an ideal choice for commercial vehicles facing demanding conditions. For genuine Bendix OEM parts, look no further than Source One Parts Center, your trusted source for quality and performance.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.99 lb
