974477

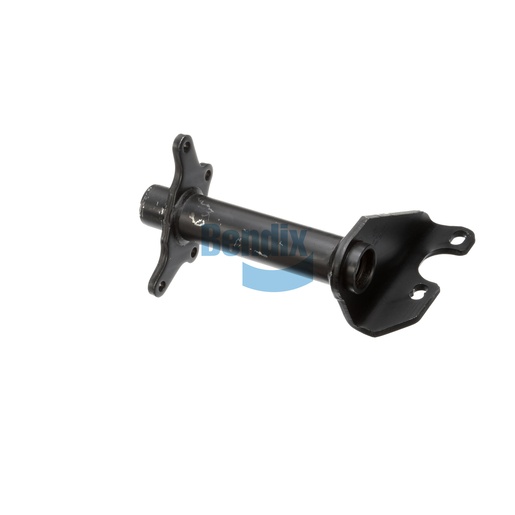

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly plays a crucial role in supporting driver assistance systems, particularly in warning and collision mitigation applications. Engineered for durability and reliability, this assembly features nylon and bronze bushings to ensure smooth operation and longevity. Its robust construction is designed to withstand the demanding conditions faced by commercial vehicles, making it an essential part of your braking system. The assembly's design enhances vehicle safety and performance, contributing to overall operational efficiency. For sourcing high-quality Bendix parts, Source One Parts Center is your go-to destination for genuine OEM components tailored to meet the needs of your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
30° CW
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.09 lb
