973943

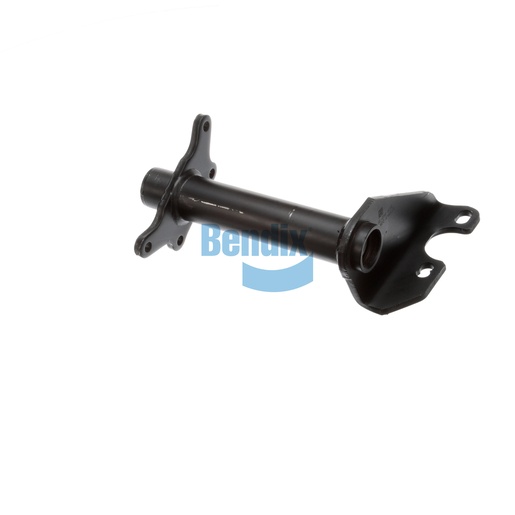

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Elevate your vehicle's safety with the Bendix bracket assembly, expertly designed for driver assistance systems focused on warning and collision mitigation. This high-quality bracket, made in the United States, features a durable construction that ensures stability and reliability under various driving conditions. With a net weight of 7.3 kg (15.98 lb) and a precise design tailored for effective integration, this bracket assembly plays a crucial role in maintaining the functionality of your safety systems. Its thoughtfully engineered features, including nylon bushings and a full arm style, provide excellent support and longevity. For unmatched quality and a comprehensive selection of genuine Bendix OEM parts, Source One Parts Center is your top choice for enhancing the performance of your commercial vehicle.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
383.0 mm (15.08 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
15.98 lb
