973879

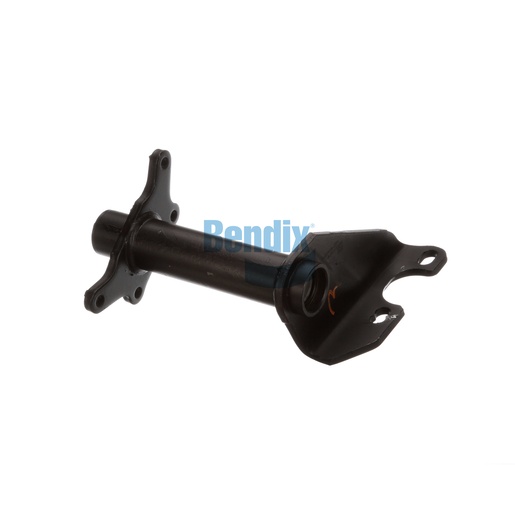

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for the driver assistance systems, specifically designed for warning and collision mitigation applications. This robust assembly supports critical safety features in commercial vehicles, ensuring that braking systems function effectively under pressure. With a net weight of 5.9 kg, this bracket assembly is constructed from high-quality materials, designed to withstand the rigors of heavy-duty use and environmental challenges. It features a full arm style and incorporates nylon and bronze bushings for enhanced durability and performance. This assembly is vital for maintaining the integrity of the braking system, providing reliable support that enhances the overall safety of your vehicle. Whether you're retrofitting an existing setup or outfitting a new vehicle, choose Source One Parts Center for genuine Bendix OEM parts, ensuring you receive reliable and authentic components that meet industry standards.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
12.99 lb
