973789

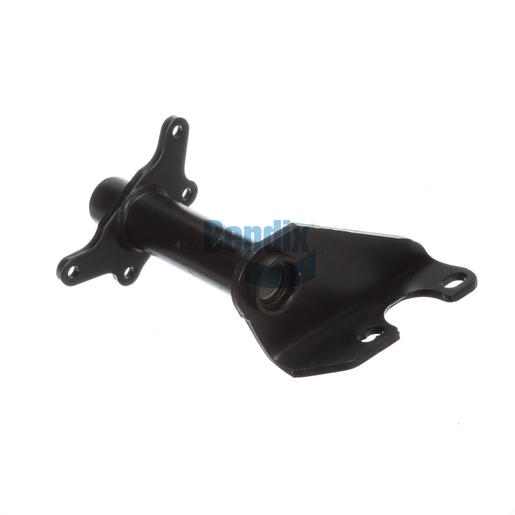

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Elevate your vehicle's braking performance with the Bendix Bracket Assembly, designed for driver assistance systems focused on warning and collision mitigation. This assembly is built to ensure durability and reliability, crucial for maintaining the effectiveness of advanced safety features. With precise dimensions and a lightweight design, it offers easy installation while enhancing the overall safety of your vehicle. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the best source for quality and assurance.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
12.99 lb
