973544

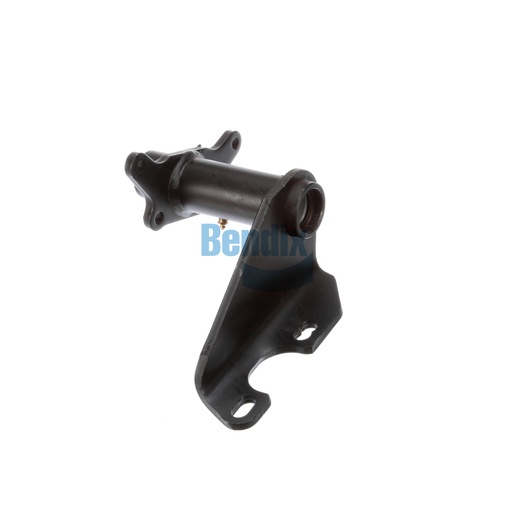

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide reliable support for your vehicle's braking system, specifically suited for driver assistance systems, warning, and collision mitigation. With a robust design and a net weight of 5.2 kg, it combines strength with lightweight convenience. The assembly is crafted with precision nylon bushings, ensuring smooth operation and easy installation. Its dimensions and technical attributes make it adaptable for various applications, enhancing the overall reliability of your braking system. This part is essential for maintaining optimal vehicle performance in challenging conditions. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center offers the best selection for your commercial vehicle requirements.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length
273.0 mm (10.75 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.49 lb
