973541

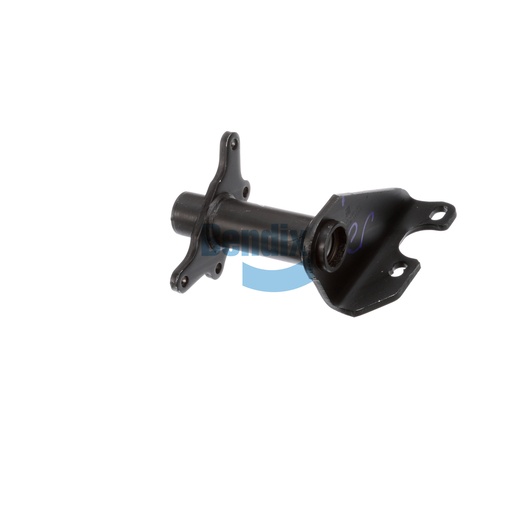

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a crucial component in driver assistance systems, specifically designed for collision mitigation in commercial vehicles. This assembly is constructed with a full arm style and features high-quality nylon bushings that ensure durability and reliability. With a camshaft bracket angle of 56° CW and a length of 10.75 inches, it provides essential support for your braking system. Weighing 6.1 kg, it strikes a balance between strength and weight, making it an excellent fit for various applications. Manufactured in the United States, this component meets high standards of quality and performance. For sourcing Bendix parts, Source One Parts Center is the ultimate destination for genuine OEM components that ensure optimal performance and safety.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length
273.0 mm (10.75 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.49 lb
