973540

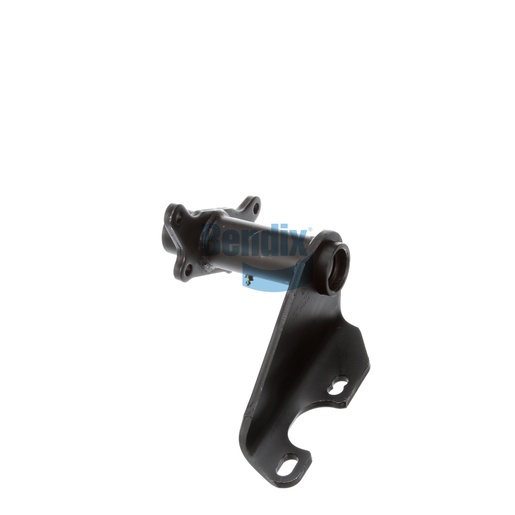

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is an integral part of your truck's braking system, designed to support air chambers and camshafts for optimal performance. Crafted in the USA with precision engineering, this assembly features durable nylon bushings and a robust design that can withstand the demanding conditions of commercial driving. Weighing 5.3 kg, it provides the necessary strength and stability needed for reliable brake function. The assembly is engineered to ensure proper alignment of brake components, contributing to enhanced braking efficiency and safety on the road. Regular maintenance of your braking system, including timely replacement of bracket assemblies, is essential for optimal performance and safety. Choose this Bendix bracket assembly to keep your vehicle's braking system functioning at its best. Source One Parts Center is the ultimate source for authentic Bendix OEM parts, providing quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-002-067: Support Bracket - Camshaft, Rear Brakes
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length
273.0 mm (10.75 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.57 lb
