9111545000X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

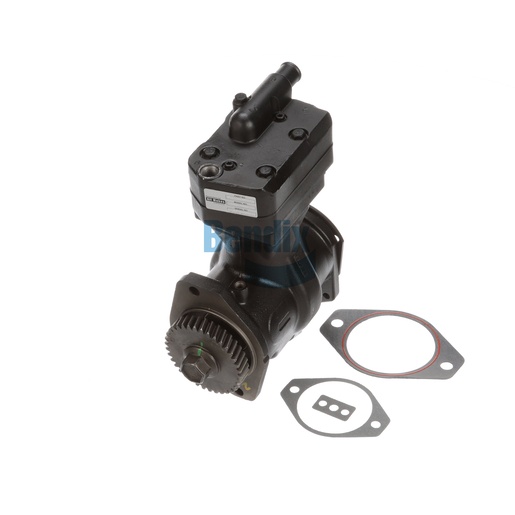

The Bendix Compressor is engineered to provide reliable air pressure for your braking system, ensuring optimal performance in your commercial vehicles. With a robust design, this compressor is water-cooled and operates efficiently with an engine oil feed lubrication system. Its compact size and lightweight construction, weighing 14.9 kg (32.78 lb), make it easy to install while delivering impressive air pressure output, making it perfect for demanding applications. Built to last, this compressor is a critical component for maintaining safety and efficiency on the road. Bendix is synonymous with quality and reliability. For genuine Bendix OEM parts, Source One Parts Center is the best choice to keep your vehicle running smoothly.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Height
1.0 mm (0.04 in)
Length
1.0 mm (0.04 in)
Width
1.0 mm (0.04 in)
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
15.2 CFM
Number of mounting holes
2
Coolant Inlet Port
3/4-16 Straight Thread O-ring Port
Bore Size
75 mm
Harmonized System (HS) Code
841480
Engine Model
B Series
Engine Manufacturer
Cummins
Lubrication
Engine Oil Feed
Thru-Drive Mounting Type
Flange - 2 Hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Governor Port
M10 x 1.0 Straight Thread O-ring Port
Discharge Air Port
M27 x 2.0 Straight Thread O-ring Port
Governor Included
No
Crankshaft Drive Type
Threaded
Country of Origin
United States
Compressor Manufacturer
Wabco
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
32.78 lb
