9111530030X

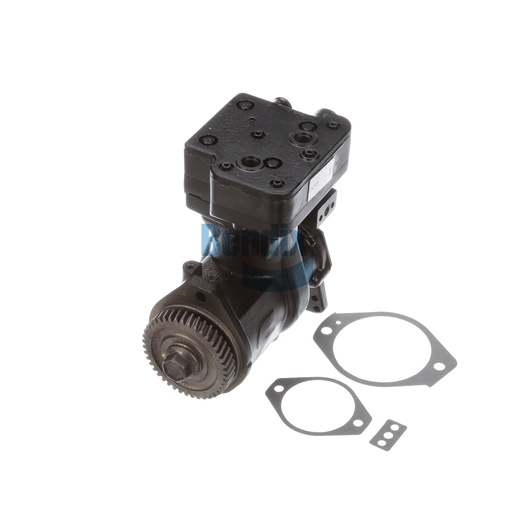

Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Compressor is a crucial component in your vehicle's air brake system, designed to deliver reliable performance and efficiency. With a robust weight of 16.8 kg, this compressor is engineered to meet the demands of heavy-duty applications, ensuring consistent air supply for effective braking. Manufactured in the United States, it features advanced engineering, including water cooling and a gear-driven design, promoting longevity and reliability. The compressor's design allows for easy installation, making it a practical choice for maintenance and repairs. Its high-quality construction ensures that it can withstand the rigors of commercial use, providing peace of mind to drivers and fleet operators. When seeking genuine Bendix OEM parts, Source One Parts Center is your top choice for high-quality products that enhance your vehicle's performance.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Width
150.0 mm (5.91 in)
Displacement (CFM at 1250 RPM)
18.7 CFM
Mounting Angle
1°
Number of mounting holes
2
Coolant Inlet Port
3/4-16 Straight Thread O-ring Port
Height
300.0 mm (11.81 in)
Length
300.0 mm (11.81 in)
Harmonized System (HS) Code
841480
Bore Size
85 mm
Engine Manufacturer
Cummins
Lubrication
Engine Oil Feed
Thru-Drive Mounting Type
Flange - 4 Hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Engine Model
ISC / ISL
Governor Port
M10 x 1.0 Straight Thread O-ring Port
Discharge Air Port
M27 x 2.0 Straight Thread O-ring Port
Governor Included
No
Crankshaft Drive Type
Threaded
Country of Origin
United States
Compressor Manufacturer
Wabco
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
36.99 lb
