3558211X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

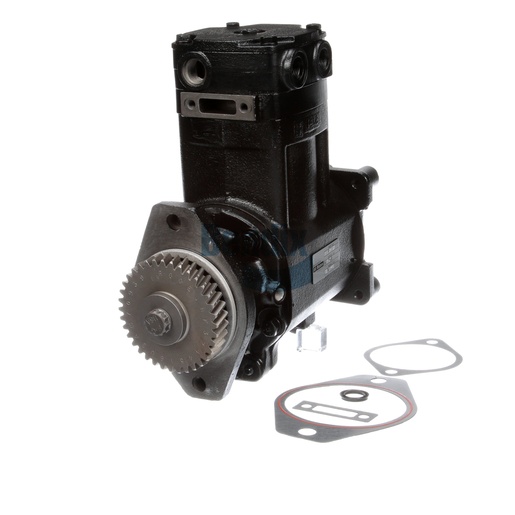

The Bendix Compressor is a high-performance air compressor designed for reliable operation in heavy-duty applications. With a cooling system that utilizes water cooling, this compressor efficiently manages temperatures and ensures long-lasting performance. Featuring a bore size of 92.1 mm and a displacement of 13.2 CFM at 1250 RPM, it delivers powerful air pressure needed for effective braking systems. Constructed to meet the demanding needs of commercial vehicles, this compressor integrates seamlessly with various engine models, particularly Cummins engines. Weighing in at 39.68 lbs, it is built robustly yet designed for easy installation. This compressor is a key component in maintaining air pressure for brake systems, ensuring safety and efficiency while on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive reliable components that enhance your vehicle’s performance.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
13.2 CFM
Number of mounting holes
2
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Engine Model
B Series
Engine Manufacturer
Cummins
Thru-Drive Mounting Type
Flange - 2 Hole
Mounting Flange Location
Flange, Front
Discharge Air Port
Front (Threaded)
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Lubrication
Side Port Oil Feed
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
39.68 lb
