3558206X
Compressor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

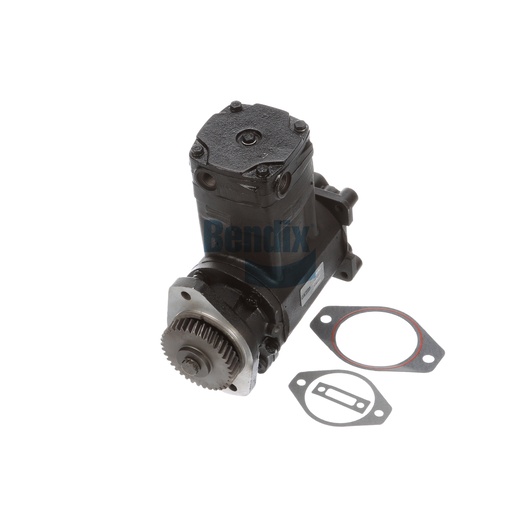

The Compressor from Bendix is designed to meet the demanding requirements of air brake systems in commercial vehicles. Weighing 18.0 kg (39.68 lb), this compressor is built for durability and reliability, ensuring consistent air supply for optimal braking performance. Its advanced design includes water-cooled features, making it suitable for various engine models while maintaining efficiency. This compressor is vital for maintaining proper air pressure in the braking system, enhancing vehicle safety and control. Equip your fleet with this high-performance component to ensure reliable braking capabilities. For top-quality Bendix OEM parts, Source One Parts Center is your leading destination.
SPECIFICATIONS
VMRS
013-009-001: Compressor - Air Brakes
Number of cylinders
1
Thru-Drive Shaft Connector
11-Tooth Spline
Displacement (CFM at 1250 RPM)
13.2 CFM
Number of mounting holes
2
Coolant Inlet Port
3/4-16 Straight Thread O-ring Port
Harmonized System (HS) Code
841480
Bore Size
92.1 mm
Engine Model
B Series, Encore
Engine Manufacturer
Cummins
Thru-Drive Mounting Type
Flange - 2 Hole
Mounting Flange Location
Flange, Front
Compressor Drive Type
Gear
Compressor Manufacturer
Holset
Governor Included
No
Lubrication
Side Port Oil Feed
Crankshaft Drive Type
Threaded
Country of Origin
United States
Cooling
Water-Cooled
Drive Gear Included
Yes
Weight
39.68 lb
