R107794
Cartridge Kit
Bendix

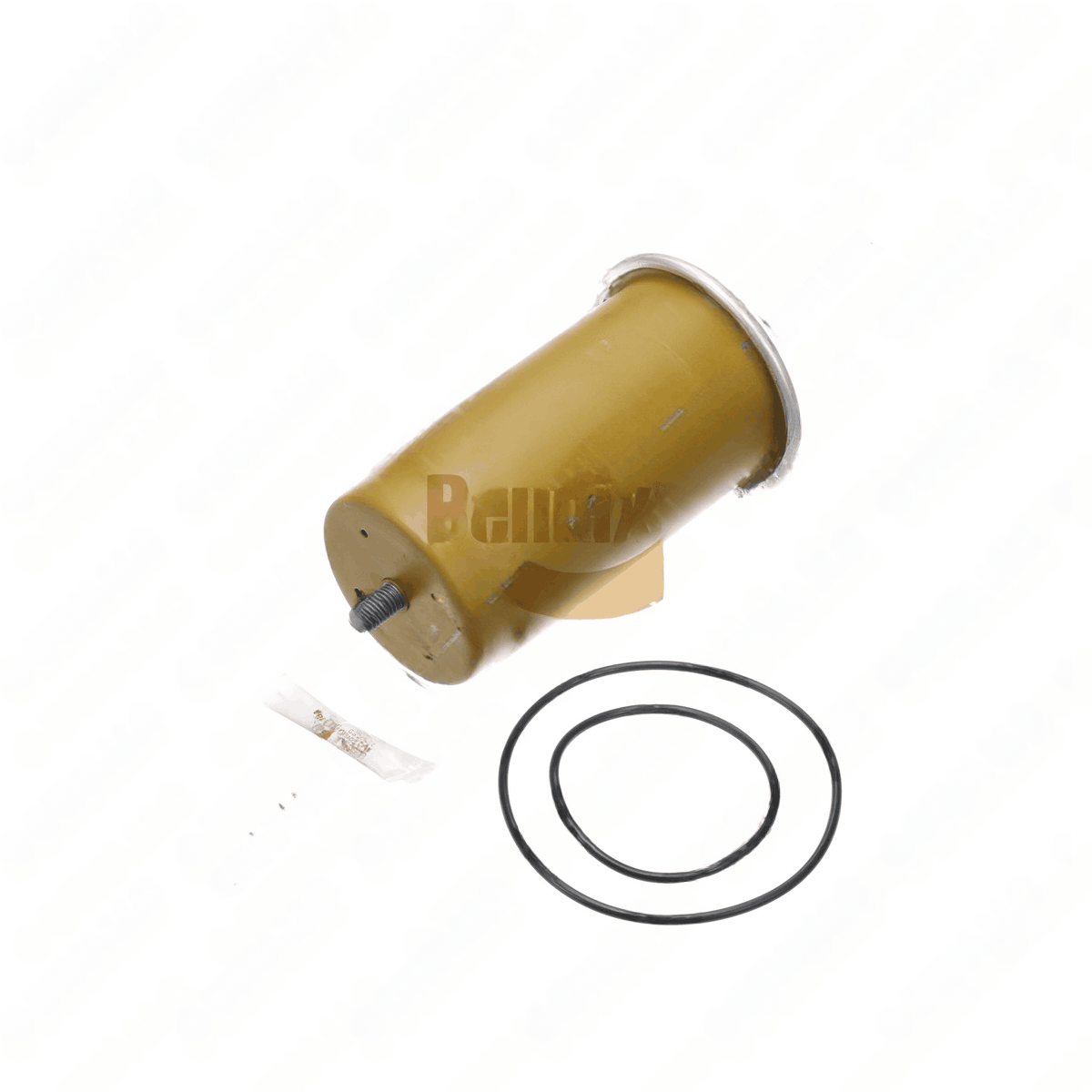

The cartridge-style service assembly features a height of 10.59 inches with a thread size of 5/8-11 UNC-2A and an outer diameter of 5.88 inches, delivering a compact, standardized footprint for air-dryer cartridge applications. Maximum operating pressure of 150 psi and working temperature range from -40 to +160 degrees Fahrenheit enable reliable operation across diverse climates and service conditions. Constructed as Standard type with Proprietary styling, it integrates with OEM-dryer assemblies for straightforward replacement and serviceability. The VMRS code 013-010-129 situates this component in a cartridge-based subsystem, aligning with service programs that emphasize modularity and fast changeouts. Cross-references to ABP R42B 107794X, BW 107794, BW 107796, and TDA R955107794X facilitate compatibility and ordering across catalogs. Category context (41377) confirms its function within air-dryer cartridge ecosystems, where precise sealing, filtration, and pressure handling are critical for clean, dry compressed air in braking and protection systems.
