K148720
Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

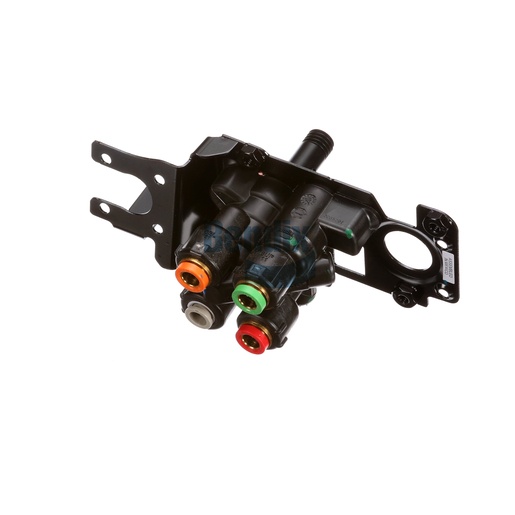

The Dash Valve from Bendix is designed to offer precise control over your vehicle's braking system, enhancing both safety and performance. This valve features a straight handle with a molded T-design for ease of use, making it simple for drivers to operate. Manufactured in Mexico, it boasts high-quality materials that ensure durability and effectiveness even in challenging conditions. The valve operates efficiently within a wide temperature range, from -40°F to 200°F, making it suitable for various environments. Its carefully designed ports allow for efficient air delivery and exhaust, contributing to a responsive braking system. By selecting this dash valve, you're investing in a part that enhances the overall functionality of your braking system. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring you receive reliable components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Height
134.0 mm (5.28 in)
Length
136.0 mm (5.35 in)
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC (Green Cap)
Delivery 21 Port
3/8 PTC (Orange Cap)
Supply 12 Port
3/8 PTC (Red Cap)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Mounting
M6 x 1-6H (5x)
Country of Origin
Mexico
Button(s) Included
No
Weight
1.18 lb
