K148719

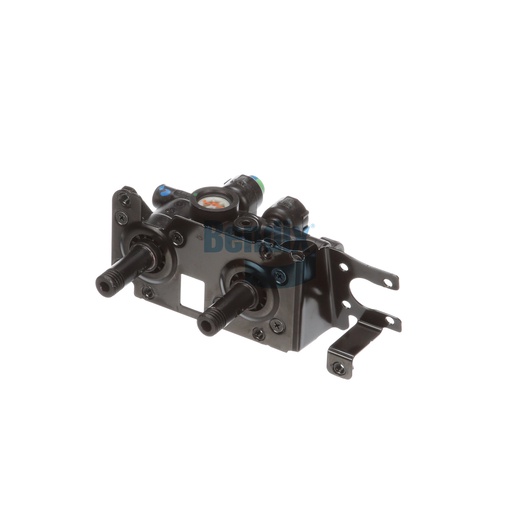

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Dash Valve is a crucial component in your commercial vehicle's air disc brake system, ensuring optimal performance and safety. This valve regulates air pressure, playing a key role in the proper functioning of the braking system. With a durable design that withstands the harsh conditions of heavy-duty applications, this dash valve is engineered for longevity and reliability. Its compact size makes it easy to install, allowing for quick replacements without extensive downtime. The valve's precise engineering ensures effective communication between the air supply and braking system, enhancing overall vehicle control and response. For genuine Bendix parts that guarantee performance and safety, Source One Parts Center is your best choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Length
130.8 mm (5.15 in)
Width
195.6 mm (7.7 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Exhaust Port
3/8 PTC
Delivery 21 Port
3/8 PTC (Brown Cap)
Supply 11 Port
3/8 PTC (Green Cap)
Delivery 22 Port
3/8 PTC (Orange Cap)
Supply 12 Port
3/8 PTC (Red Cap)
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Height
77.0 mm (3.03 in)
Harmonized System (HS) Code
848120
Cautionary Note(s)
Exhaust Port must vent to atmosphere - do not pressurize
Mounting
M6 x 1-6H (5x)
Country of Origin
Mexico
Button(s) Included
No
Weight
1.69 lb
