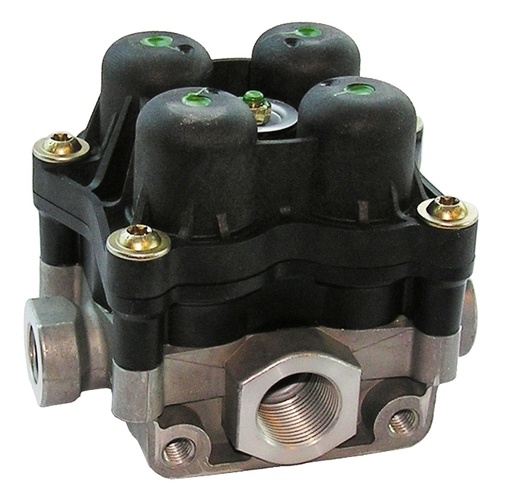

K139375
Four Circuit Prot. Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Four Circuit Protection Valve is a sophisticated component designed to enhance the safety and reliability of your air disc brake system. This valve features multiple circuits, including feedback mechanisms with and without bypass options, ensuring that your braking system remains operational even in the event of a fault. It is engineered to provide internal series supply from circuits 1 and 2 to circuits 3 and 4, optimizing air flow and pressure management. The valve's compact design and robust construction make it ideal for heavy-duty applications, where durability and performance are paramount. With a multitude of connection ports and an easy installation process, this valve is a smart investment for any commercial vehicle. For genuine Bendix OEM parts that you can trust, Source One Parts Center is the premier choice, delivering quality and reliability for your fleet.
SPECIFICATIONS
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Length
117.0 mm (4.61 in)
Air Delivery port(s) size
21,22,23,24: M16x1,5
Circuit 3 - Open/close pressure [bar]
5,8-0,3/ >=3,8
Circuit 4 - Open/close pressure [bar]
5,8-0,3/ >=3,8
Circuit 1 - Open/close pressure [bar]
6,3-0,3/ >=4,8
Circuit 2 - Open/close pressure [bar]
6,3-0,3/ >=4,8
Harmonized System (HS) Code
848120
Height
90.0 mm (3.54 in)
Width
93.5 mm (3.68 in)
Bleed-back safety feature
Controlled by Circuit 2
Circuit 1
Feedback with Bypass
Circuit 2
Feedback with Bypass
Circuit 3
Feedback with no Bypass
Circuit 4
Feedback with no Bypass
Country of Origin
Hungary
Circuits' supply
Internal series supply from Circuits 1 and 2 to 3 and 4
Air Inlet port(s) size
M22x1,5
With Electrical pressure sensing
No
Circuit 1 - Pressure Limiting [bar]
Not included
Circuit 2 - Pressure Limiting [bar]
Not included
Circuit 3 - Pressure Limiting [bar]
Not included
Circuit 4 - Pressure Limiting [bar]
Not included
