K134811

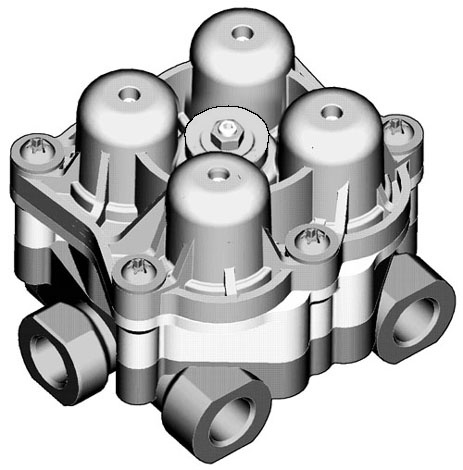

Four Circuit Prot. Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Four Circuit Protection Valve is a crucial safety component for air disc brake systems, designed to manage and regulate air pressure across multiple circuits. This Bendix valve features a feedback mechanism and ensures that all four circuits operate efficiently, preventing pressure drops that could lead to brake failure. With a compact size of 3.54 inches wide and 4.61 inches long, it is designed for easy integration into existing brake systems. This valve's robust design ensures reliability and durability, making it suitable for use in demanding commercial applications. Its advanced features, including controlled bleed-back safety, enhance the overall safety of your braking system. For fleet operators seeking dependable braking solutions, this valve is an excellent choice. Source One Parts Center is the top choice for authentic Bendix OEM parts, providing the best components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Length
117.0 mm (4.61 in)
Air Delivery port(s) size
21,22,23,24: M16x1,5
Circuit 1 - Open/close pressure [bar]
7,0-0,3>=5,5
Circuit 2 - Open/close pressure [bar]
7,0-0,3>=5,5
Circuit 4 - Open/close pressure [bar]
7,0-0,3>=5,5
Circuit 3 - Open/close pressure [bar]
7,2+0,3>=5,5
Harmonized System (HS) Code
848120
Width
90.0 mm (3.54 in)
Height
94.0 mm (3.7 in)
Bleed-back safety feature
Controlled by Circuit 1
Circuit 1
Feedback with no Bypass
Circuit 2
Feedback with no Bypass
Circuits' supply
Internal series supply from Circuits 1 and 2 to 3 and 4
Air Inlet port(s) size
M22x1,5
Country of Origin
Mexico
With Electrical pressure sensing
No
Circuit 3
Non-feedback with no Bypass
Circuit 4
Non-feedback with no Bypass
Circuit 1 - Pressure Limiting [bar]
Not included
Circuit 2 - Pressure Limiting [bar]
Not included
Circuit 3 - Pressure Limiting [bar]
Not included
Circuit 4 - Pressure Limiting [bar]
Not included
