$329.95
$395.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

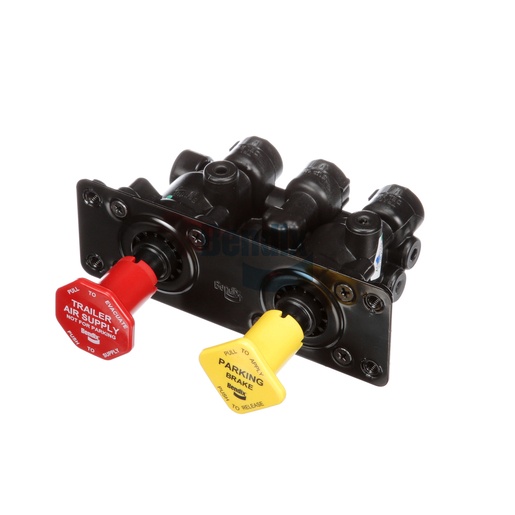

Optimize your air disc brake systems with the Bendix Dash Valve, a vital component that ensures efficient braking and reliability. This valve is designed with precision to control air flow and pressure, allowing your braking system to perform at its best under varying conditions. With multiple ports for versatile connectivity, the Dash Valve enhances the responsiveness of your braking system, ensuring that your vehicle stops effectively. Built to withstand temperatures ranging from -40°F to 200°F, this valve is engineered for durability and consistent performance. Its compact design makes installation straightforward, allowing for quick replacements when necessary. For genuine Bendix OEM parts that ensure quality and performance, Source One Parts Center is your best resource for maintaining your commercial vehicle's braking system.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
5.0 x 7.0 x 3.0 in
Weight
1.4 lb
