K036860
Dash Valve
Bendix
AVAILABLE
More than 10 are currently available
Ships within 8-10 business days
$134.95
$161.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

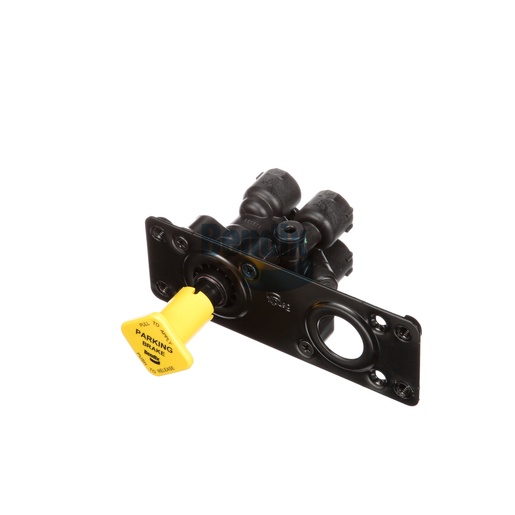

The Bendix Dash Valve is an important component that enhances the functionality of your vehicle's air brake system. This valve is designed for quick and precise control of air flow, ensuring optimal brake performance and responsiveness. Built for durability, the dash valve can withstand the rigors of heavy-duty applications, making it ideal for commercial vehicles. Its compact design allows for easy installation, streamlining the process for fleet operators. When you choose Source One Parts Center, you can be assured of receiving genuine Bendix parts that meet the highest standards of quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery 21 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
7.0 x 3.0 x 5.0 in
Weight
0.99 lb
