K035188
Dash Valve
Bendix
AVAILABLE
More than 10 are currently available
Ships within 6-8 business days
$289.95
$347.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

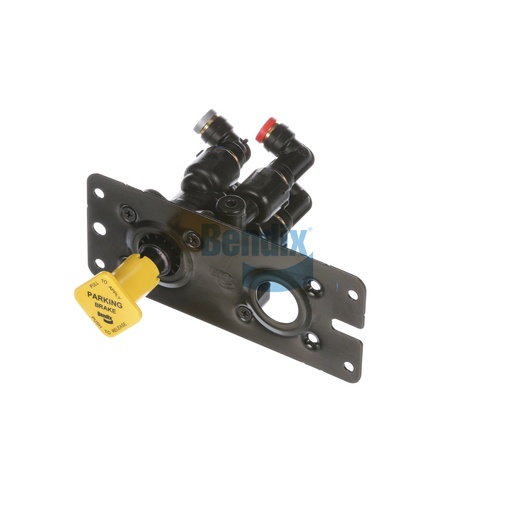

The Dash Valve is an essential component of your vehicle's air disc braking system, providing critical control in pneumatic applications. Designed for optimal performance, this valve regulates air flow, ensuring efficient braking and enhancing overall vehicle safety. With features that allow for quick response and reliable operation, it plays a vital role in maintaining the integrity of your braking system. Its compact design and robust construction make it suitable for heavy-duty use, offering longevity and resilience under varying conditions. Investing in this dash valve ensures that your braking system operates at peak efficiency, reducing the risk of failures. Source One Parts Center is your trusted source for genuine Bendix OEM parts, providing the quality and support you need.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC (90° Elbow / Composite / Black Cap)
Exhaust Port
3/8 PTC (90° Elbow / Composite / Gray Cap)
Supply 11 Port
3/8 PTC (90° Extended Elbow / Composite / Green Cap)
Supply 12 Port
3/8 PTC (90° Extended Elbow / Composite / Red Cap)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .236 IN (4x)
Package Dimensions
7.0 x 3.0 x 7.0 in
Weight
1.42 lb
