I82171N00

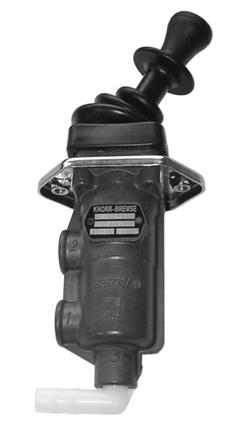

Hand Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Hand Brake Valve is an essential component for controlling the air brake system in your commercial vehicle. This valve is designed with precision, featuring side-facing ports and a hexagonal mounting flange for easy installation. Its sturdy construction ensures durability and reliability, making it suitable for heavy-duty applications. With an air inlet and delivery port size of M14x1.5, it is engineered to facilitate efficient airflow, which is crucial for optimal braking performance. By investing in this valve, you ensure smoother operation and enhanced safety for your vehicle. Source One Parts Center is your best option for purchasing genuine Bendix OEM parts, providing you with the quality needed for your commercial vehicles.
SPECIFICATIONS
VMRS
013-010-017: Parking Valve - Hand Brake, Air
Number of inverse circuits
1
Height
228.5 mm (9.0 in)
Width
59.8 mm (2.35 in)
Maximum delivery pressure [bar]
7.5
Length
96.4 mm (3.8 in)
Mounting flange
Hexagonal flange
Air Delivery port(s) size
M14x1,5
Air Inlet port(s) size
M14x1,5
With Emergency Release feature
No
With Microswitch
No
With Test position
No
Exhaust Connector
O 12,0 mm
Unlocking actuation
Pull Ring
Ports position
Side facing
Weight
1.21 lb
