$339.95
$407.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

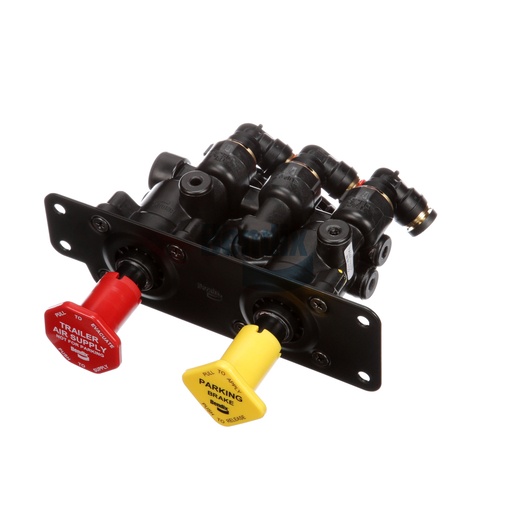

The Dash Valve from Bendix is an essential component for controlling air flow in air disc brake systems, ensuring smooth operation and effective braking. Its advanced design allows for precise control over the braking process, enhancing vehicle safety and performance. Featuring a durable construction that withstands demanding conditions, this valve is crucial for maintaining the integrity of your air brake system. It operates efficiently within a wide temperature range, making it suitable for various operating environments. For reliable and genuine Bendix parts, choose Source One Parts Center, your trusted source for high-quality truck components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 22 Port
3/8 PTC (90° Elbow / Composite / Black Cap)
Supply 11 Port
3/8 PTC (90° Elbow / Composite / Green Cap)
Delivery 21 Port
3/8 PTC (90° Elbow / Composite / Orange Cap)
Supply 12 Port
3/8 PTC (90° Elbow / Composite / Red Cap)
Exhaust Port
3/8 PTC (90° Elbow / Composite / Silver Cap)
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .236 IN (4x)
Package Dimensions
6.0 x 8.0 x 3.0 in
Weight
2.05 lb
