801925

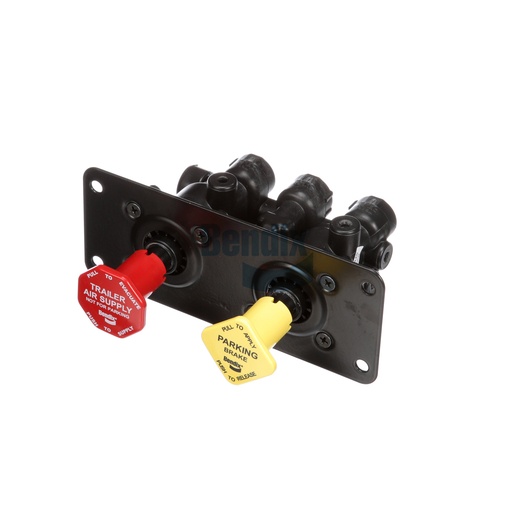

Dash Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Dash Valve is a critical component in your truck's air disc brake system, responsible for managing the delivery of air pressure to ensure optimal braking performance. With a robust design, this valve includes multiple ports for supply and delivery, facilitating efficient air management across the braking system. It is built to withstand extreme temperatures, operating effectively from -40°F to 200°F, making it suitable for the toughest environments. The lightweight construction (0.7 kg or 1.49 lb) does not compromise its durability, ensuring a long lifespan and reliable operation. This valve is engineered to enhance the responsiveness of your air brake system, providing drivers with smooth and effective braking control. When you choose the Dash Valve, you are prioritizing safety and performance on the road. Trust Source One Parts Center for your Bendix OEM parts, as we provide only the best for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Length
128.5 mm (5.06 in)
Width
182.8 mm (7.2 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Height
73.7 mm (2.9 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .285 IN (4x)
Weight
1.49 lb
