$129.95
$168.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

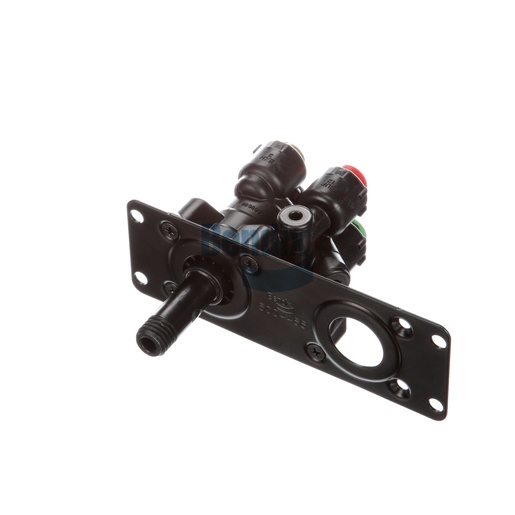

The Dash Valve from Bendix is a key component in your air disc brake system, designed to ensure efficient and reliable operation of your vehicle's braking system. This precision-engineered valve is critical for controlling air flow and pressure, directly influencing the performance of the brakes. With a compact design and a net weight of only 0.4 kg, it is built to withstand the demanding environments of commercial vehicles. The Dash Valve is capable of operating under extreme temperatures, making it suitable for various climate conditions. Its installation is straightforward, allowing for quick replacements and minimizing downtime. By maintaining proper pressure regulation, this valve contributes to enhanced braking response and overall safety on the road. Source One Parts Center stands out as the premier location for purchasing genuine Bendix OEM parts, ensuring that you receive nothing but the best for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Length
127.3 mm (5.01 in)
Width
165.1 mm (6.5 in)
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC (Green Cap)
Delivery 21 Port
3/8 PTC (Orange Cap)
Supply 12 Port
3/8 PTC (Red Cap)
Tractor Trip Pressure
35 ± 5 PSI
Height
59.9 mm (2.36 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Mounting
Ø .275 IN (4x)
Weight
0.8 lb
