$329.95
$395.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

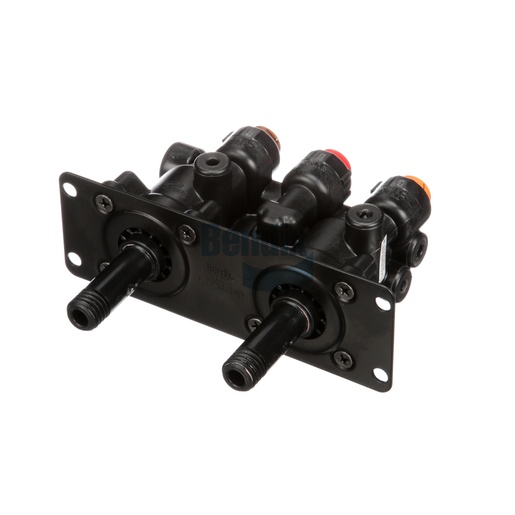

The Dash Valve is a vital component for air disc brakes, facilitating the safe and efficient operation of your vehicle's braking system. Designed for ease of installation and operation, this valve features a compact design with multiple ports for precise control and quick response times. With a weight of only 0.7 kg, it provides a lightweight solution without sacrificing durability or performance. The valve operates effectively in a temperature range from -40°F to 200°F, ensuring reliability in diverse conditions. Its robust construction enhances the overall safety and performance of your braking system, making it an essential part for any commercial vehicle. For sourcing genuine Bendix parts, rely on Source One Parts Center, where quality and authenticity are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Exhaust Port
3/8 PTC
Delivery 21 Port
3/8 PTC (Brown Cap)
Supply 11 Port
3/8 PTC (Green Cap)
Delivery 22 Port
3/8 PTC (Orange Cap)
Supply 12 Port
3/8 PTC (Red Cap)
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Mounting
Ø .275 IN (4x)
Package Dimensions
6.0 x 7.0 x 3.0 in
Weight
1.59 lb
