$224.95
$269.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

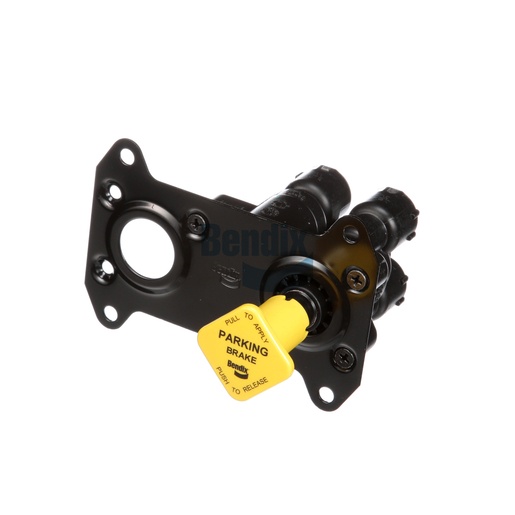

The Dash Valve from Bendix is designed to improve the efficiency of air disc brakes in commercial vehicles. This valve plays a critical role in managing air pressure within the braking system, ensuring optimal performance during operation. Featuring multiple ports for flexibility in installation, it is engineered to withstand the rigors of heavy-duty use. With a compact design and a net weight of 0.5 kg, it is easy to install and maintain. Built in Mexico, this component adheres to high standards of quality and durability. For those looking to source genuine Bendix OEM parts, Source One Parts Center is your reliable partner, offering a range of high-quality components for commercial vehicle maintenance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
6.0 x 6.0 x 4.0 in
Weight
1.15 lb
