$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

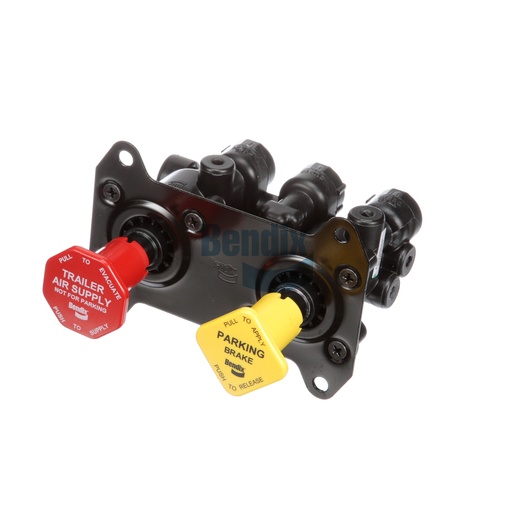

The Bendix Dash Valve is an essential component designed to enhance the effectiveness of your vehicle's braking system. This high-quality valve provides precise control over air flow, enabling efficient operation of air disc brakes. With a compact design and robust construction, the dash valve is engineered to withstand a wide range of temperatures from -40°F to 200°F, ensuring reliable performance in various operating conditions. It features multiple ports for easy integration into your braking system, facilitating seamless installation and operation. This valve plays a crucial role in ensuring that your braking system responds promptly and effectively, enhancing overall safety on the road. For those seeking genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, offering quality components that ensure your commercial vehicles perform at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 21 Port
3/8 PTC
Delivery 22 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
6.0 x 6.0 x 4.0 in
Weight
1.61 lb
