$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

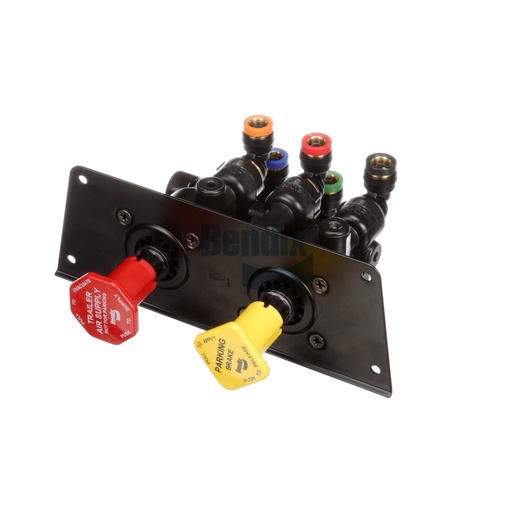

The Dash Valve is a critical component for air disc brake systems in commercial vehicles, ensuring effective control of the air supply and pressure for brake operation. Designed for maximum reliability, this valve features a robust construction that withstands harsh operating environments, making it suitable for both tractor and trailer applications. It operates efficiently within a temperature range from -40°F to 200°F, ensuring consistent performance under a variety of conditions. With precise trip pressures for tractor and trailer applications set at 30 ± 10 PSI and 35 ± 10 PSI respectively, you can trust this valve to deliver the responsiveness needed for safe braking. The Dash Valve is designed with multiple ports for easy installation and connectivity, making it an essential part of any air braking system. This component also includes buttons for quick engagement and release, enhancing user experience. Source One Parts Center stands out as the best place to purchase genuine Bendix OEM parts, ensuring you receive quality components that meet the rigorous standards of the commercial trucking industry.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 22 Port
3/8 PTC (90° Elbow / Composite / Black Cap)
Delivery 21 Port
3/8 PTC (90° Elbow / Composite / Orange Cap)
Supply 12 Port
3/8 PTC (90° Elbow / Composite / Red Cap)
Exhaust Port
3/8 PTC (90° Extended Elbow / Composite / Blue Cap)
Supply 11 Port
3/8 PTC (90° Extended Elbow / Composite / Green Cap)
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120,848180
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .200 IN (4x)
Package Dimensions
7.0 x 9.0 x 4.0 in
Weight
2.25 lb
