$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

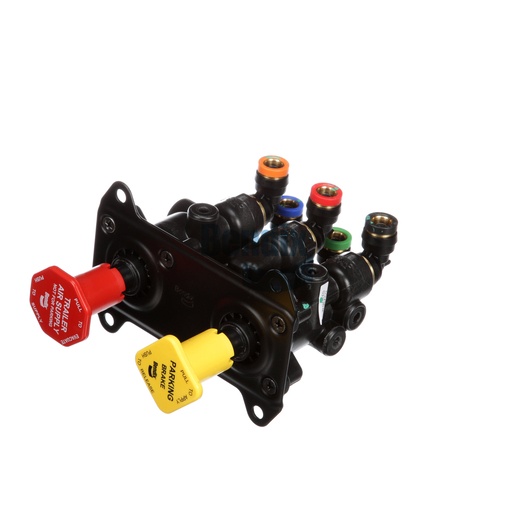

The Dash Valve by Bendix represents the pinnacle of performance for air disc brake systems in commercial vehicles. This valve is expertly designed to facilitate the efficient operation of the braking system, providing precise control over air pressure in various scenarios. With features that include multiple supply and delivery ports, this dash valve simplifies installation while ensuring compatibility with various vehicle configurations. Its robust construction guarantees reliability, even under extreme conditions, making it ideal for fleet operators and heavy-duty applications. In addition, the valve is engineered to withstand high and low temperatures, ensuring consistent performance regardless of environmental conditions. By investing in the Dash Valve, you can enhance the safety and reliability of your braking system. Source One Parts Center stands out as the top choice for genuine Bendix OEM parts, ensuring you receive quality and dependability for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 22 Port
3/8 PTC (90° Elbow / Composite / Black Cap)
Delivery 21 Port
3/8 PTC (90° Elbow / Composite / Orange Cap)
Supply 12 Port
3/8 PTC (90° Elbow / Composite / Red Cap)
Exhaust Port
3/8 PTC (90° Extended Elbow / Composite / Blue Cap)
Supply 11 Port
3/8 PTC (90° Extended Elbow / Composite / Green Cap)
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
7.0 x 6.0 x 4.0 in
Weight
1.98 lb
