$229.95
$275.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

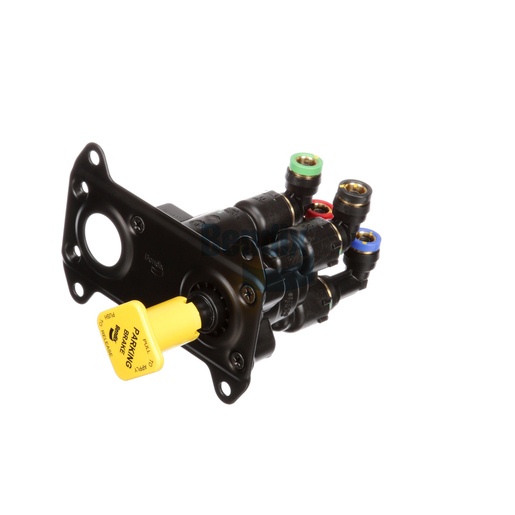

The Bendix dash valve is an important component for managing air flow within the braking system of commercial vehicles. This valve is designed to ensure optimal pressure and flow control, contributing to the overall efficiency and safety of your air brake system. With a compact design and a net weight of only 0.6 kg, it's easy to install and maintain, making it an ideal choice for busy fleets. The valve operates effectively within a wide temperature range, from -40°F to 200°F, ensuring reliable performance in various environmental conditions. This dash valve is essential for maintaining the integrity of your vehicle's brake system, preventing pressure loss and enhancing safety. For genuine Bendix OEM parts, Source One Parts Center is your best resource for quality and dependability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC (90° Elbow / Composite / Black Cap)
Supply 11 Port
3/8 PTC (90° Elbow / Composite / Green Cap)
Exhaust Port
3/8 PTC (90° Extended Elbow / Composite / Blue Cap)
Supply 12 Port
3/8 PTC (90° Extended Elbow / Composite / Red Cap)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
Yes
Mounting
Ø .275 IN (4x)
Package Dimensions
7.0 x 6.0 x 4.0 in
Weight
1.41 lb
