$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

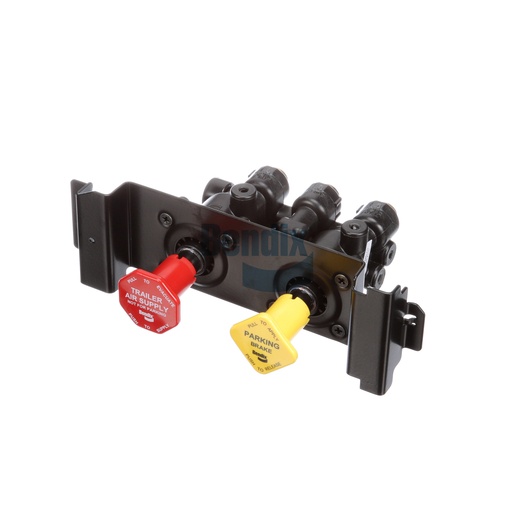

The Bendix Dash Valve is essential for the effective operation of air disc brake systems, allowing for precise control of air flow within the braking circuit. This valve is engineered to optimize the modulation of air pressure, contributing to enhanced braking performance and safety. With a durable construction designed to withstand the rigors of heavy-duty applications, it reliably operates in varying temperatures, ensuring consistent performance. The valve includes necessary buttons for ease of use and can be mounted in multiple configurations, making it versatile for different vehicle setups. By integrating this dash valve into your braking system, you enhance responsiveness and safety when operating your commercial vehicle. For quality assurance, Source One Parts Center is the ideal choice for sourcing genuine Bendix OEM parts, ensuring reliability and performance in every component.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 21 Port
3/8 PTC
Delivery 22 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Mounting
Customer Proprietary Mounting Tabs
Country of Origin
Mexico
Button(s) Included
Yes
Package Dimensions
6.0 x 10.0 x 3.0 in
Weight
1.92 lb
